Ultra High-Speed Cameras
The Pharsighted E9 series ultra high-speed cameras are the world’s first backside-illuminated, full-frame high speed cameras. With unparalleled speed and unmatched light sensitivity the E9 series of ultra high-speed
cameras are ideally suited for applications requiring visualization at over 100,000fps.

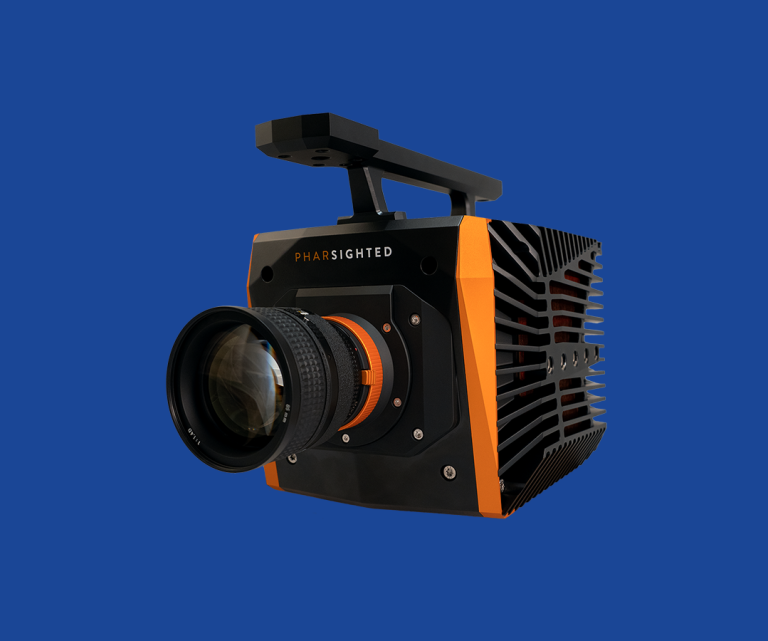

Pharsighted E9 Series
MODELS E9•50S / E9•80S / E9•100S / E9•150S
The Pharsighted E9 series of ultra high-speed cameras are the world’s first backside-illuminated, full-frame high speed cameras. With unparalleled speed and
unmatched light sensitivity the E9 series is ideally
suited for applications requiring visualization at over 100,000fps.
Coming Soon
Performance Charts
Backside-Illuminated CMOS Image Sensor:
640 x 480 pixels at 489,000fps (E9 • 150S)
640 x 480 pixels at 326,000fps (E9 • 100S)
640 x 480 pixels at 272,000fps (E9 • 80S)
640 x 480 pixels at 164,000fps (E9 • 50S)
Maximum Frame Rate:
640 x 48 pixels at 2,720,000fps (E9 • 150S)
640 x 32 pixels at 2,720,000fps (E9 • 100S)
640 x 32 pixels at 2,457,000fps (E9 • 80S)
640 x 16 pixels at 1,980,000fps (E9 • 50S)
Class Leading Light Sensitivity:
ISO 12232 daylight
ISO 200,000 monochrome
ISO 80,000 color
Global Electronic Shutter:
34ns minimum exposure time (E9 • 150S)
59ns minimum exposure time (E9 • 100S)
98ns minimum exposure time (E9 • 80S/E9 • 50S)
Fast, In-Camera Storage:
Removable U.2 NVMe SSD
Internal Recording Memory:
162GB, 324GB, 648GB (E9 • 150S)
108GB, 216GB, 432GB (E9 • 100S / E9 • 80S)
54GB, 108GB, 216GB (E9 • 50S)
Fast 10-Gigabit Ethernet Interface:
Provides camera control and high-speed image download to standard PC or MAC and Linux systems.
Supports IEEE 1588 (PTPv2) time code.
Rugged IP68 RJ45 connector.
Camera Size:
240mm (H) x 212mm (W) x 175mm (D)
9.45” (H) x 8.35” (W) x 6.89” (D)
Weight: 10.88kg (24 lbs)
Flexible I/O:
Six 5V TTL, I/O BNCs, each settable as a Output, Input, or Open Drain Bi-Directional.
Signal polarity, pulse delay, & pulse width are all configurable.
Signals such as Trigger, Frame Sync, Ready, Shutter, and Event are available.
Dedicated trigger, SDI, and analog BNCs.
NVMe SSD:
U.2 NVMe drives provide for fast, long-term, and cost-effective storage that is readily available.
Write speeds allow for either immediate backup of the image buffer or significant capture rates directly to the SSD.
The .SLOW files stored on a drive can be viewed in a standard OS environment.
Every E9 includes a ~1.6TB drive, drive tray, and USB-C dock.
SLOW Software
Clean, intuitive control and monitoring of live cameras.
Playback from the image buffer, on-board SSD, or local .SLOW files.
Windows, MAC OS, and Linux Compatible.
The .SLOW format contains both RAW image data and metadata.
Conversion of .SLOW to common video and image formats such as MP4,.AVI and .TIFF.
