Streaming Cameras
The Photron INFINICAM is a compact USB 3.1 streaming high-speed camera that captures 1.2 MP image data at up to 1,000 fps directly to PC memory for real-time processing. With Python/C++ SDK support and real-time
compression for speeds up to ~31,000 fps at reduced resolution, it’s ideal for machine vision, motion analysis,
and high-speed imaging workflows requiring flexibility and ease of integration.

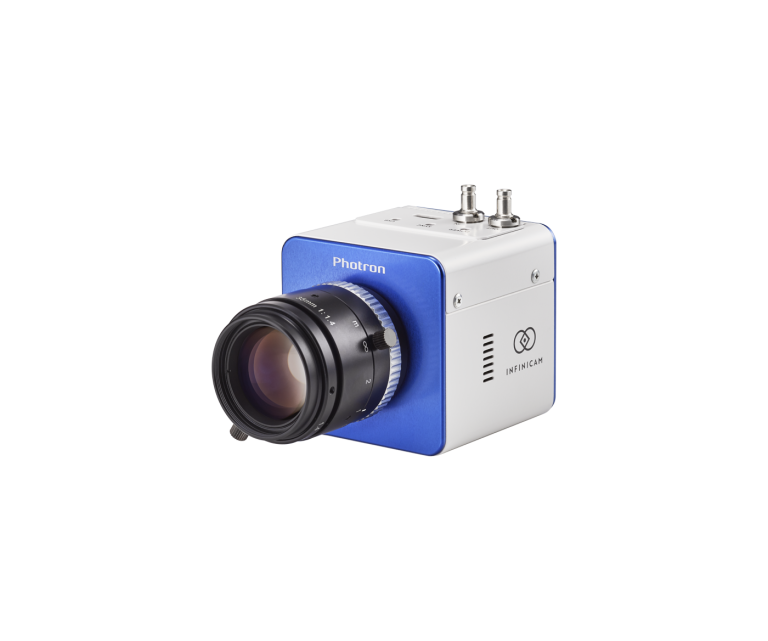

Infinicam
MODEL UC-1.1
INFINICAM is a high-speed streaming camera capable of capturing and transferring 1.2-megapixel of image data to PC memory at 1,000fps via USB 3.1. The latest version of the SDK supports Python, a common language in the computer vision/machine vision field, in addition to C++. This makes real-time image processing with
INFINICAM possible with easy intuitive programming.
Coming Soon
Performance Charts
1-Megapixel CMOS Image Sensor:
1246 x 1024 pixels at 50 to 988fps
1246 x 1008 pixels at 1,000fps
1246 x 496 pixels at 2,000fps
1246 x 176 pixels at 5,000fps
Maximum Frame Rate:
31,157fps at 1246 x 16 pixels
Class Leading Light Sensitivity:
ISOmonochrome
Global Electronic Shutter:
6.5μs independent of frame rate
Dynamic Range (ADC):
8-bit monochrome
Compact and Lightweight:
55mm (H) x 55mm (W) x 55mm (D)
2.16” (H) x 2.16” (W) x 2.16” (D)
Weight: 280g (0.62 lbs.)
Interface:
USB 3.1 Gen 1 Type-C
High-speed image processing made simple:
High-speed image processing previously required a dedicated board and complex cabling, but now can be implemented with a single general-purpose USB 3.1 Type C cable and a PC.
Compact, Lightweight, C-mount:
The compact and lightweight housing, (55mm x 55mm x 55mm, 280g), makes it easy to install. The C-mount lens compatibility allows for the use of a wide range of lenses.
Real-time high-speed image compression:
Real-time compression to less than 1/4 the original data volume enables highspeed 1.2-megapixel image streaming at 1,000fps and up to 30,000fps at 1,246 x 16 pixels.
Open development environment:
The latest SDKs, development environment, and manuals can be downloaded from: www.photron.com Sample applications can be accessed at GitHub.
Data capture with just four lines of programming:
Python is now supported, making programming easier and more intuitive. Utilizing Python script, the camera may be controlled with as few as four lines of code.
Real-time image processing;
Real-time image processing can be performed at the maximum speed of the camera. A sample app is available with pre-programmed source code (C++ and Python).
