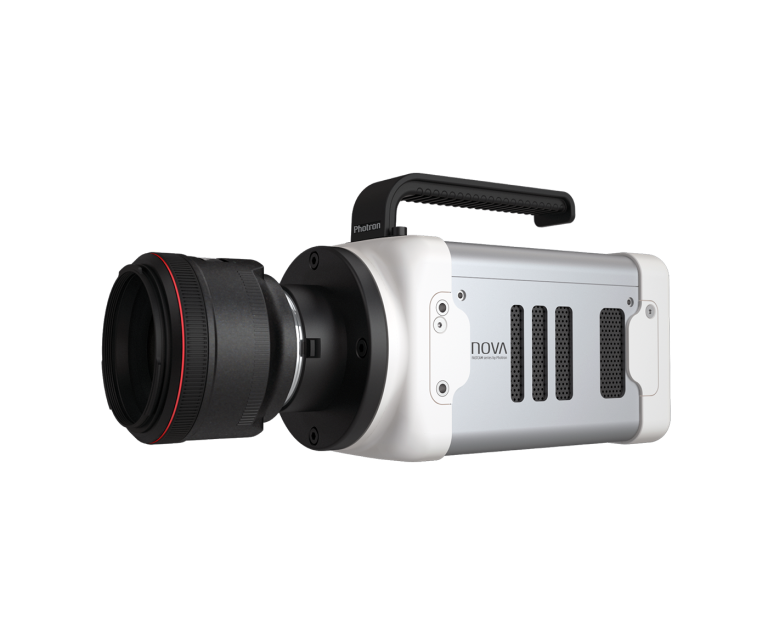

FASTCAM NOVA R Series
The FASTCAM NOVA R3-4K and R5-4K bring together unique CMOS image sensor technologies and extensive high-speed digital imaging expertise to provide a camera with the flexibility to be used in a wide variety of applications.
FASTCAM NOVA R
MODELS R3-4K / R5-4k
Available in two performance level models – FASTCAM NOVA R3-4K and R5-4K – the cameras deliver 12-bit image recording rates up to 750fps and 1,250fps
respectively at 4K image resolution and 800fps and 1,440fps respectively at UHD image resolution, with shutter speeds to 2µs. Recording rates to 200,000fps are available at reduced image resolutions for the
FASTCAM NOVA R5-4K.
Coming Soon
Performance Charts
9.4-megapixel CMOS Image Sensor:
4096 x 2304 pixels (4K) at 1,250fps (NOVA R5-4K)
4096 x 2304 pixels (4K) at 750fps (NOVA R3-4K)
3840 x 2160 pixels (UHD) at 1,440fps (NOVA R5-4K)
3840 x 2160 pixels (UHD) at 800fps (NOVA R3-4K)
Maximum Frame Rate:
200,000fps (NOVA R5-4K)
150,000fps (NOVA R3-4K)
Class Leading Light Sensitivity:
ISO 3,200 monochrome
ISO 640 color
Global Electronic Shutter:
2µs independent of frame rate
Dynamic Range (ADC):
12-bit monochrome
36-bit color
Compact and Lightweight:
120mm (H) x 120mm (W) x 223.2mm (D)
4.72” (H) x 4.72” (W) x 8.78” (D)
Weight: 3.5kg (7.7 lbs.)
Internal Recording Memory:
16GB, 32GB, 64GB, 128GB
Optional FASTDrive Removable High Capacity Data Storage:
4TB High-speed Solid State Drive
Fast 10-Gigabit Ethernet Interface:
Provides camera control and high-speed image download to standard PC
Fan Stop Function:
Remotely switch off cooling fans to eliminate
vibration when recording at high magnifications
Optional Removable Data Storage:
FASTCAM NOVA R3-4K / R5-4K cameras can be supplied with the Photron FASTDrive high-capacity removable SSD. The ultra-high data rate FASTDrive allows a 128GB camera recording to be transferred to a removable SSD drive in approximately
2 minutes. Recorded data can then be directly accessed while coupled to the camera or the drive may be removed and
inserted into the portable FASTDock station connected to any Windows PC.
High-Speed Gigabit Ethernet Interface:
FASTCAM NOVA R3-4K / R5-4K cameras are equipped with a high-speed 10-Gigabit Ethernet Interface to provide reliable camera control and fast download of image data.
Dedicated I/O:
A dedicated BNC connection for a contact closure hardware trigger input supporting NO, NC operation is provided. In
addition, two programmable inputs and two programmable
output channels provide direct connection for common tasks such as synchronization of multiple cameras and operation in conjunction with Data Acquisition (DAQ) hardware.
Ruggedized Mechanical Calibration Shutter:
The ruggedized mechanical shutter is fitted as standard to FASTCAM NOVA R3-4K / R5-4K cameras allows sensor black
balance calibration to be carried out remotely from the system control software.
Optional C-Mount and Canon EF Lens Mounts:
In addition to the standard Nikon G type lens adapter, all
FASTCAM Nova models support an optional C-mount lens
adapter and an optional Canon EF lens adapter which, through Photron FASTCAM Viewer (PFV), not only enables remote
operation of lens focus and aperture but also adds Auto-Focus capability.
