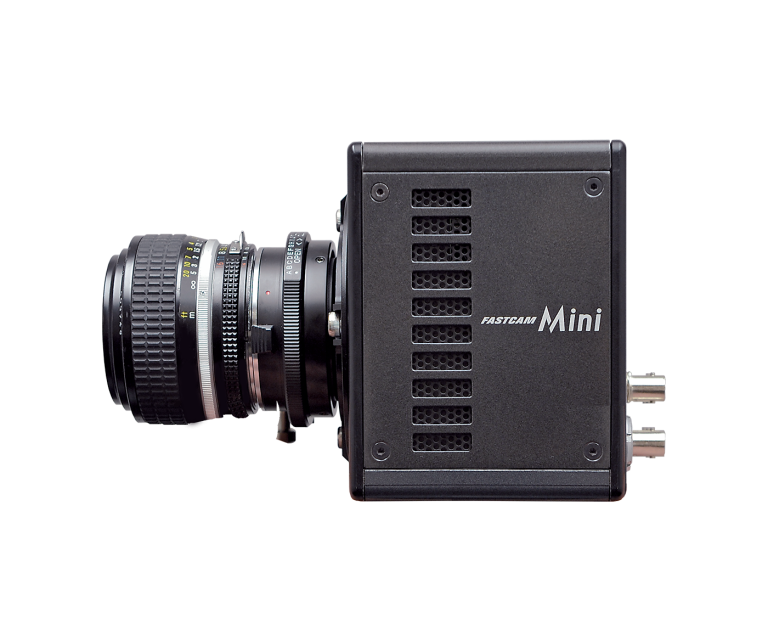

FASTCAM MINI UX
For use with a wide range of general scientific and industrial applications the Photron Mini UX high-speed camera provides outstanding imaging performance at a very attractive price performance ratio.
FASTCAM MINI UX
MODELS UX50 / UX100
Two Mini UX camera models provide 1.3-megapixel (1280 x 1024 pixels) image resolution with frame rates up to 2,000fps from the Mini UX50 and 4,000fps from the mini UX100. Both models are available with recording memory options up to 32GB providing extended recording times and triggering flexibility.
Coming Soon
Performance Charts
1.3-Megapixel CMOS Sensor:
1280 x 1024 pixels at 4,000fps (Mini UX100)
1280 x 1024 pixels at 2,000fps (Mini UX50)
1280 x 1000 pixels at 5,000fps (Mini UX100)
1280 x 800 pixels at 6,250fps (Mini UX100)
1280 x 800 pixels at 2,500fps (Mini UX50
Maximum Frame Rate:
800,000fps (Mini UX100 type 800K)
204,800fps (Mini UX100 type 200K)
160,000fps (Mini UX50 type 160K)
Class Leading Light Sensitivity:
ISO 10,000 monochrome
ISO 5,000 color
Global Electronic Shutter:
Minimum Shutter speed 3.9μs (to 1μs
dependent on frame rate selection)
Dynamic Range (ADC):
12-bit monochrome, 36-bit color
Compact and Lightweight:
120mm (H) x 120mm (W) x 93mm (D)
4.72” (H) x 4.72” (W) x 3.66” (D)
Weight: 1.5Kg (3.13 lbs.)
Internal Recording Memory:
8GB, 16GB, or 32GB
Fast Gigabit Ethernet Interface:
Provides high-speed image download to a standard notebook/PC
Flexible Frame Synchronization:
Frame rate may be synchronized to external
unstable frequencies
High-G Rated:
Suitable for application in high-G environments;
operation tested to 100G, 10ms, 6-axes
High-Speed Gigabit Ethernet Interface:
The FASTCAM Mini UX camera system is equipped with a high-speed Gigabit Ethernet Interface to provide reliable network communication and fast download of image data.
Dedicated I/O:
A dedicated BNC connection for a contact closure hardware trigger input is provided. In addition, two programmable inputs and two programmable output channels provide direct connection for common tasks such as synchronization of multiple cameras and operation in conjunction with Data Acquisition (DAQ) hardware.
Nikon G-Type Compatible Lens Fitting:
The FASTCAM Mini UX camera is equipped with an objective lens mount compatible with readily available Nikon G-type lenses. Controls provided within the lens mount allow the control of lens aperture on lenses without external iris control.
