FASTCAM MINI R Series
This new generation of the popular FASTCAM Mini series with a proprietary 4K/ UHD sensor is ideally suited for applications where observation of a large spatial area without loss of image quality is required – applications such as automotive safety testing (car-to-car, pedestrian testing, barrier/ roll-over testing and curtain airbag), fluid dynamics (PIV, microfluidics) material testing (DIC, drop testing) are some of the main applications for this product.

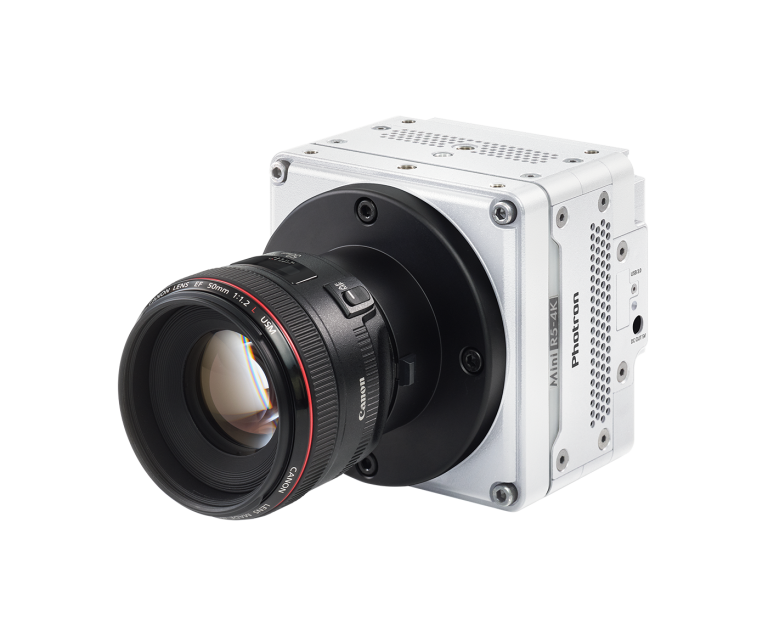

FASTCAM MINI R
MODELS R3-4K / R5-4K
With the FASTCAM MINI R-4K cameras, users can enjoy 12-bit image recording rates of up to 750fps (MINI R3-4K) and 1,250fps (MINI R5-4K) at 4K resolution, with impressive shutter speeds that go as low as 2µs. For even higher frame rates, the camera offers recording rates of up to 150,000fps (MINI R3-4K) and 200,000fps (MINI R5-4K) at lower image resolutions. The FASTCAM MINI R-4K cameras are compact, rugged, lightweight, and provides the best light sensitivity and image quality – truly setting it apart from other cameras in its class.
Coming Soon
Performance Charts
9.4-megapixel CMOS Image Sensor:
4096 x 2304 pixels (4K) at 750fps (MINI R3-4K)
4096 x 2304 pixels (4K) at 1,250fps (MINI R5-4K)
3840 x 2160 pixels (UHD) at 800ps (MINI R3-4K)
3840 x 2160 pixels (UHD) at 1,440fps (MINI R5-4K)
1920 x 1080 pixels (FHD) at 3,000fps (MINI R3-4K)
1920 x 1080 pixels (FHD) at 5,280fps (MINI R5-4K)
Maximum Frame Rate:
200,000fps (MINI R5-4K)
150,000fps (MINI R3-4K)
Class Leading Light Sensitivity:
ISO 4,000 monochrome
ISO 800 color
Global Electronic Shutter:
2µs independent of frame rate
Dynamic Range (ADC):
12-bit monochrome
36-bit color
Compact and Lightweight:
120mm (H) x 120mm (W) x 94.4mm (D)
4.72” (H) x 4.72” (W) x 3.71” (D)
Weight: 2.1kg (4.63lbs.)
Internal Recording Memory:
16GB, 32GB, 64GB
Fast 10-Gigabit Ethernet Interface:
Provides camera control and high-speed image download to standard PC
Fan Stop Function:
Remotely switch off cooling fans to eliminate
vibration when recording at high magnifications
High-G Rated:
Suitable for application in high-G environments.
Operation tested to 100G, 10ms, 6-axes
High-Speed Gigabit Ethernet Interface:
The FASTCAM MINI R-4K cameras include a high-speed 10-Gigabit Ethernet Interface to provide reliable camera control and fast download of image data.
Dedicated I/O:
A dedicated BNC connection for a contact closure hardware trigger input supporting NO, NC opertion is provided. In addition, two programmable inputs and two programmable output channels provide direct connection for common tasks such as synchronization of multiple cameras and operation in conjunction with Data Acquisition (DAQ) hardware.
Ruggedized Mechanical Calibration Shutter:
The ruggedized mechanical shutter is fitted as standard on all FASTCAM MINI R-4K cameras, allowing sensor black balance calibration to be carried out remotely from the system control software.
Optional C-Mount and Canon EF Lens Mounts:
In addition to the standard Nikon G type lens adapter, all FASTCAM MINI R-4K cameras, support an optional C-mount lens adapter and an optional Canon EF lens adapter which, through Photron FASTCAM Viewer (PFV), not only enables remote operation of lens focus and aperture but also adds Auto-Focus capability.
