1MP and 2MP Cameras
The Photron 1MP and 2MP high-speed camera lineup delivers exceptional frame rates, superior light sensitivity, and crisp image detail for demanding test and measurement applications. Ideal for automotive, aerospace,
defense, and industrial R&D, these systems provide the perfect balance of speed and resolution—capturing fast events with precision, reliability, and seamless workflow integration. See more. Measure more. Validate with confidence.

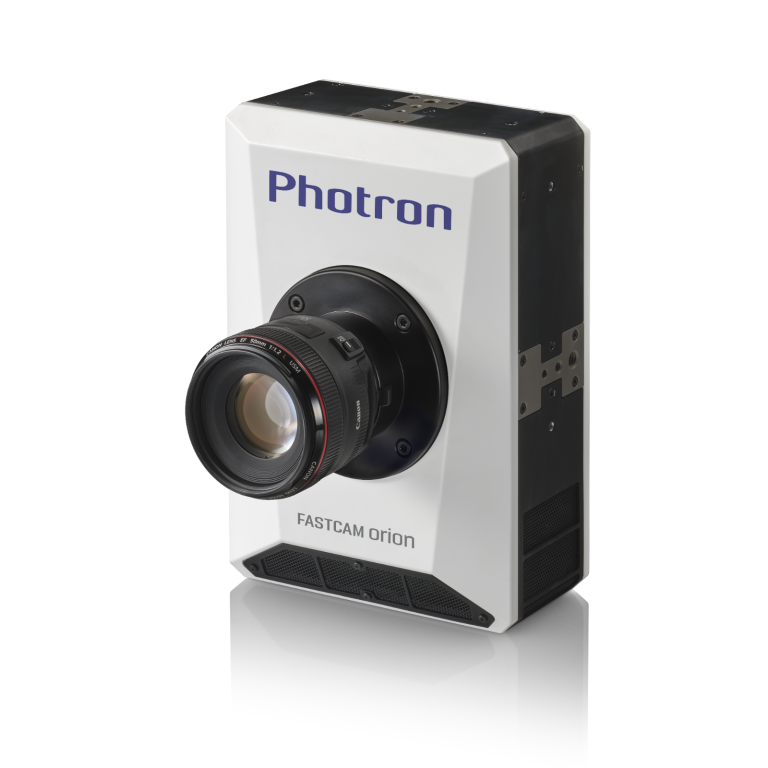

FASTCAM Orion S40
The FASTCAM Orion S40 is the world’s first high-speed camera to
simultaneously implement both BSI (Back Side Illumination) and CDS (Correlated Double Sampling), significantly reducing temporal dark noise for improved black level resolution and dynamic range.

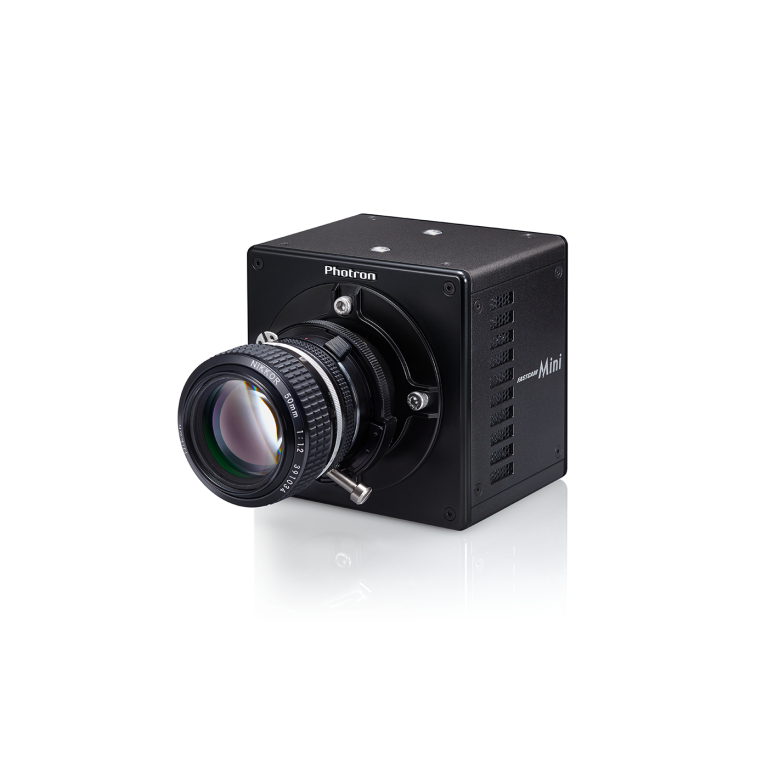

FASTCAM MINI UX
Two Mini UX camera models provide 1.3-megapixel (1280 x 1024 pixels) image
resolution with frame rates up to 2,000fps from the Mini UX50 and 4,000fps from the Mini UX100. Both
models are available with recording
memory options up to 32GB providing
extended recording times and triggering flexibility. The Mini UX is suited for
operation with a range or optical systems such as microscopes due to its small
sensor size.
FASTCAM NOVA S20
The FASTCAM NOVA S20 brings
together unique CMOS image sensor technologies and extensive high-speed digital imaging expertise to provide a
camera with the flexibility to be used in a wide range of applications. The FASTCAM NOVA S20 offers the user the freedom to select between 10-bit and 12-bit
operation to enhance performance, with megapixel recording rates up to 20,000fps and 16,500fps respectively.
FASTCAM NOVA S6 - S16
The new FASTCAM NOVA S series is
available in five different models. The NOVA S6/S9/S12 and S16 offer 12-bit image recording rates up to 16,000fps at megapixel resolution, and shutter speeds to 0.2us. Recording rates to 1,100,000fps are available at reduced resolutions.

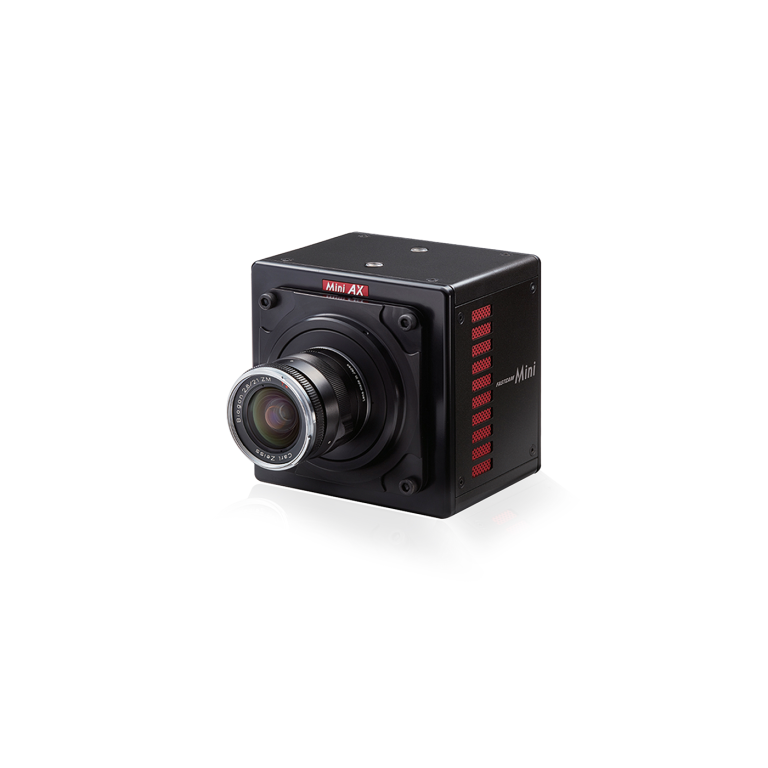

FASTCAM MINI AX
Three performance level models – Mini AX50, AX100 and AX200 –
deliver 1-megapixel image resolution (1024 x 1024 pixels) at frame rates up to 2,000fps, 4,000fps and 6,400fps
respectively. All three Mini AX models
offer a minimum exposure duration of 1μs as standard with recording memory
options up to 32GB providing extended recording times and triggering flexibility.
